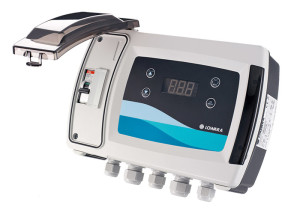

Q-Smart single-phase electronic control panel for 1 or 2 fixed speed pumps. Over 50 different combinations available within this one product that can be used for controlling pressure boosting or sewage applications.
Q-Smart 10: One Pump Control
Q-Smart 20: Two Pumps Control
Easy installation and operation
- Pre-programmed packages that decrease installation and commissioning costs
- Illuminated coloured LED status lights
Versatile
- Ideal for use in various water and wastewater applications
- Manages up to 2 pumps (booster sets)
- In case of control board failure, pumps can still be operated
- 5 digital inputs for pressure switches or floats, external on/off, min/max, pressure/level alarms, 1 analogue input for sensor, 5 inputs for sewage application probes
Specifications
- Built in overload circuit breaker(s)
- Power up to 1.5kW (power output from pump up to 12A)
- 4 Push buttons key pad
- Auto test function
- Pump rotation option
- Real Time Clock with hour counter
- Dry run, overload and short circuit protections
Option extras
- ModBus RTU module
- Programmable free voltage contacts module
